Lowest Price for Led Transformer - 60W dual output Switching Power Supply – Huyssen Detail:

Features:

Huyssen dual Output Power Supply
Universal AC input : 90-264V
Protections: Short circuit / Overload / Over voltage / over current
Cooling by free air convection
High efficiency, long life and high reliability
All using 105°C long life electrolytic capacitors
High operating temperature up to 70°C
LED indicator for power on
100% full load burn-in test
24 months warranty

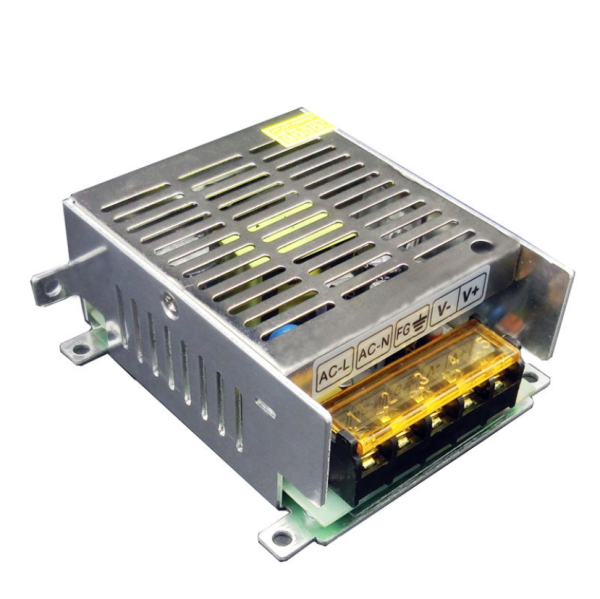

dual output power supply 60W 1

Specifications:

MODEL

HSJ-60-2412

HSJ-60-0512

HSJ-60-1212
OUTPUT OUTPUT NUMBER

CH1

CH2

CH1

CH2

CH1

CH2
DC VOLTAGE

12V

24V

5V

12V

-12V

12V
RATED CURRENT

1A

2A

2A

4A

2A

3A
RATED POWER

60W

60W

60W
RIPPLE&NOISE

120mVp-p

240mVp-p

80mVp-p

240mVp-p

300mVp-p

120mVp-p
VOLTAGEADJ.RANGE

CH1: 4.75~5.5V

CH1: 4.75~5.5V

CH1: 11.5 ~ 15.5V
VOLTAGETOLERANCE

±2.0%

±6.0%

±2.0%

±5.0%

±4.0%

±4.0%
LINEREGULATION

±0.5%

±1.5%

±0.5%

±1.0%

±0.5%

±0.5%
LOADREGULATION

±0.5%

±3.0%

±0.5%

±2.0%

±3.0%

±3.0%
SETUP.RISEHOLD.TIME 500ms, 30ms/230VAC          1200ms, 30ms/115VAC at full load
HOLD TIME 80ms/230VAC          16ms/115VAC at full load
INPUT VOLTAGE RANGE 88 ~ 264VAC  125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
FREQUENCYRANGE 47~63HZ
EFFICIENCY

84%

78%

82%
AC CURRENT 0.8A/115VAC           0.55A/230VAC
INRUSH CURRENT COLD START 36A/230VAC
LEAKAGECURRENT <2mA/240VAC
PROTECTION OVERLOAD 110~150% rated output power
Protection type: Hiccup mode,recovers automatically after fault condition is removed
OVER VOLTAGE  YES  YES
Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT WORKING TIMP -25~+70°C (Refer to “Derating Curve”)
WORKINGHUMIDITY 20~90% RH non-condensing
STORAGE TEMP HUMIDITY -40~+85°C   10~95%RH
TEMPCOEFFICIENT ±0.03%/ °C(0~50°C) on CH1 output
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETYSTANDARDS U60950, TUV EN60950 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC
ISOLATIONRESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
EMC EMISSION Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
EMC IMMUNITY Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
QTHERS MTBF 179Khrs min.      MIL-HDBK-217F (25°C )
DIMENSION 88*70*38mm (L*W*H)
PACKING 0.4Kg; 30PCS/9Kg



Applications:

Industrial control equipment, self-service terminal equipment, medical equipment, communication equipment, animation products, game consoles, beauty equipment, etc.
